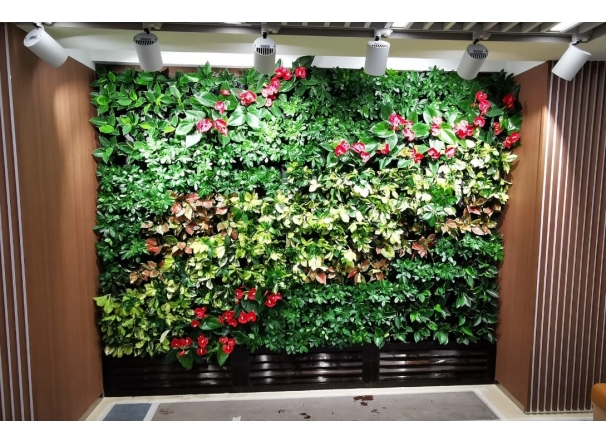

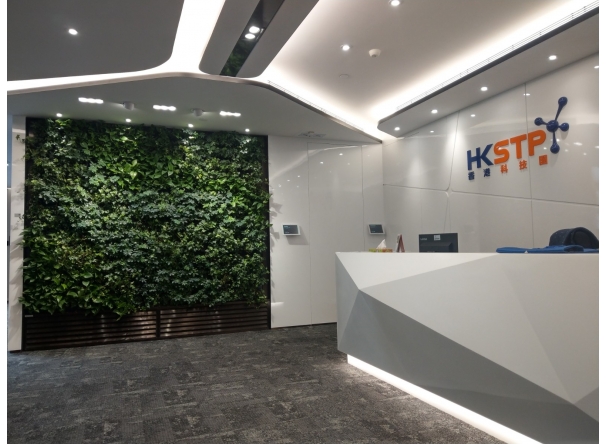

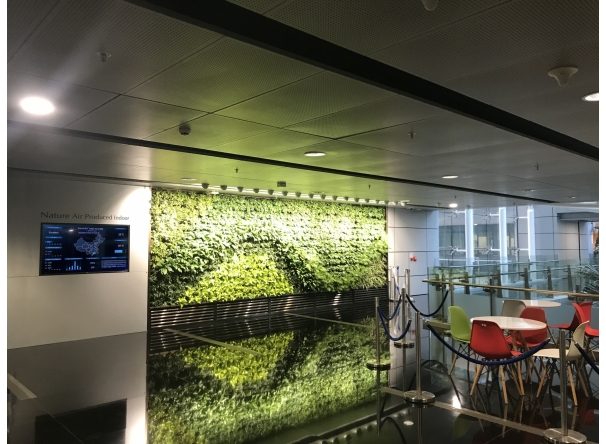

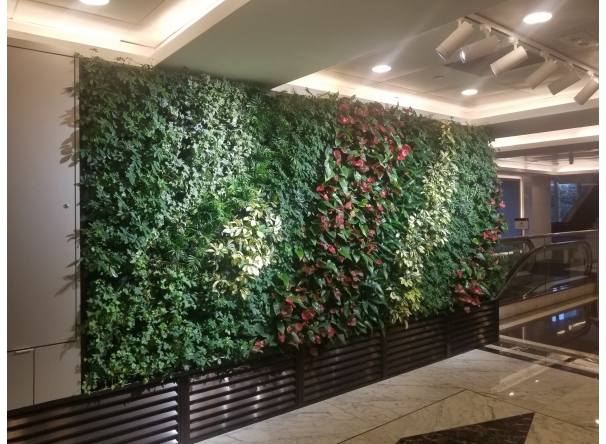

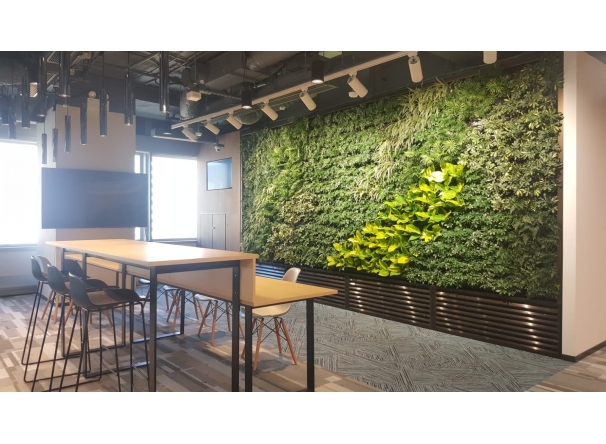

Vertical Green - Smart Green Wall System
The InnoGreen Smart Greenwall is an air purifying system that is scientifically proven to be able to effectively clean up air pollutants through a double filter of soil and plant roots.
How does it work?
Air is drawn through the greenwall and pressed through the soil filter where particulate matter, organic solvents and other harmful pollutants are trapped to decompose in the root zone.
Components:
1.An automatic dip irrigation system & drainage system
2.Metal frame
3.Modular green panels
4.Plant capsule:
- Planting medium bag
- Growing medium/ soil-less pumice stone
- Selective plants
5.Waterproofing layer (optional)
6.LED lighting features (optional)
7.Capping (optional)
8.Recycle irrigation system (optional)
Air ventilation system
| Air Pollutant Type | Reduction Rate |
| VOC and HCHO | 85% |
| Gas form Chemicals (>200 types) | 85% |
| Smelly Chemicals (>22 types) | 80-90% |
| Ammonia | 71% |
| Bacteria | 85% |
| Fungus Spores | 85% |
| PM2.5 | 50% |
| Cooling Effect (Green Plate Surface) | 1-4C lower than ambiance |
| Power Consumption | <100W per m2 |
| Preferred Species | Devil's Ivy (Epipremnum Aureum), Evergreen |
